The maximum total mass of 60 tons Let`s see the dump truck FAW exported to Africa
At the 2024 Beijing International Commercial Vehicle and Parts Exhibition held recently, FAW Jiefang and CCCC Vehicles jointly exhibited a dump truck product and held a joint brand launch ceremony, which attracted wide attention from the industry.
The left one is the dump truck jointly launched by FAW Jiefang and CCCC Vehicles
It is reported that in 2019, China FAW and China Communications Group signed a strategic cooperation agreement, the two sides successfully carried out cooperation on a number of projects, FAW Jiefang, as a subsidiary of China FAW, deeply participated in the construction of the project, and put relevant products in the Americas, Central Asia and Africa and other major projects. The joint dump truck products launched at this exhibition are customized products specially created for Ethiopia and other African regions, providing a solid guarantee for the overseas construction projects of both sides.
The two central enterprises jointly build, its product strength is sure to be excellent. Below, Xiaobian take a closer look at this car!
Meet the maximum total mass of national III emissions 60 tons

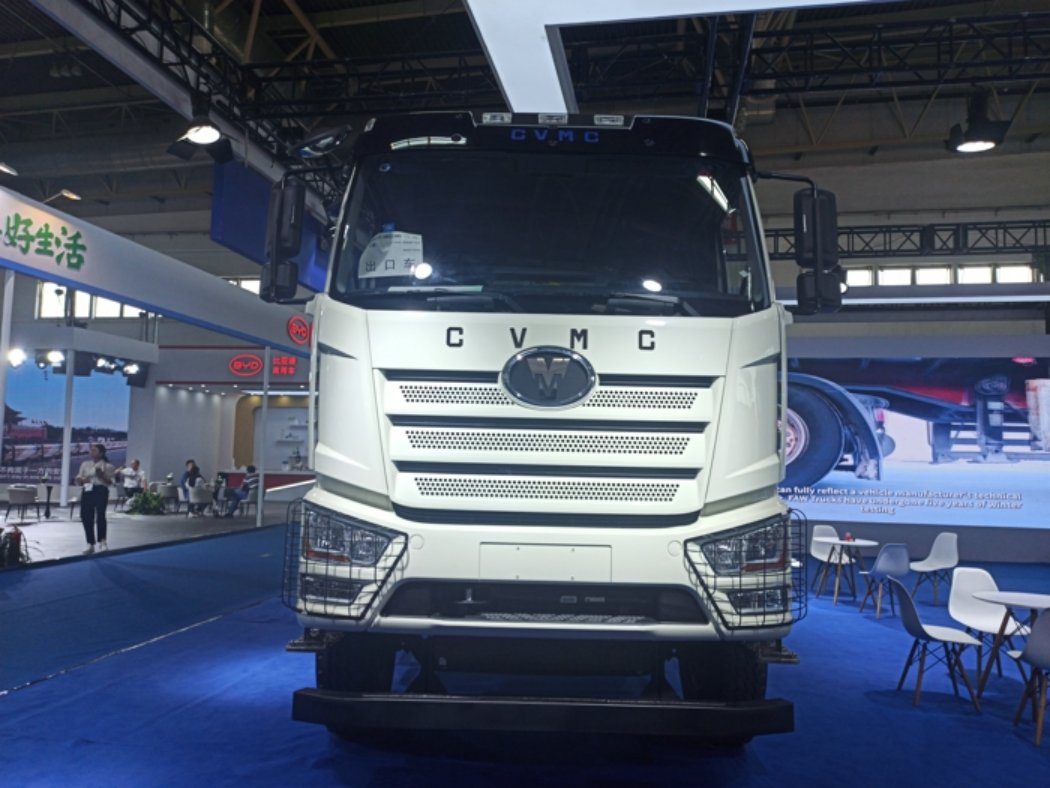

From the appearance point of view, Jiefang and Zhongjiao vehicle joint brand dump truck, the driving form is 6×4, using Jiefang J6L flat-top cab, steering wheel layout is left rudder type. The word "export car" is clearly marked on the front windshield, which means its market positioning, which also distinguishes it from other domestic display cars and attracts more attention. The front face logo of the vehicle cab adopts the trademark of the vehicle, the English logo of the vehicle "CVMC" is on the hood, and the words of the vehicle and CVMC are also visible on the side of the cab to improve the brand recognition of the vehicle.
Different from domestic vehicles, a strong protective cover is installed on the left and right headlights to protect the headlights. Its role has two points, one is to protect the headlamp from being damaged by the stones in the transportation scene, the other is to avoid the headlamp glass directly with dust and various insects, so that in the long-term use, it still maintains high brightness when driving at night, and safe driving is further guaranteed, so the protective cover can also be called "insect protection cover".
From the configuration table provided, this is a 350 horsepower J6L 6×4 dump truck, which meets the National III emission standards. Vehicle length 8540mm, width 2500mm, height 3400mm; The length of the container is 5600mm, the width is 2350mm, the height is 1500mm, and the volume of the container is 19.74 cubic meters. The cargo box has the English logo of "SUNHUNK" and the slogan of "Chinese Dump truck Choose SUNHUNK", indicating that the supporting dump container is produced by Hongchang Heavy Industry Group.
The wheelbase of the car is 3800+1350mm, the front wheel base is 2055mm, and the rear wheel base is 1878mm. The maximum total mass of the car is 60 tons, the maintenance mass is 12.3 tons, the maximum speed is 85km/h, and the maximum climb grade of Ⅰ gear is ≥30 degrees. The tyres are 12.00R20 type 18 grade.
The engine comes from tin wood and the front and rear suspension are in the form of 12 springs

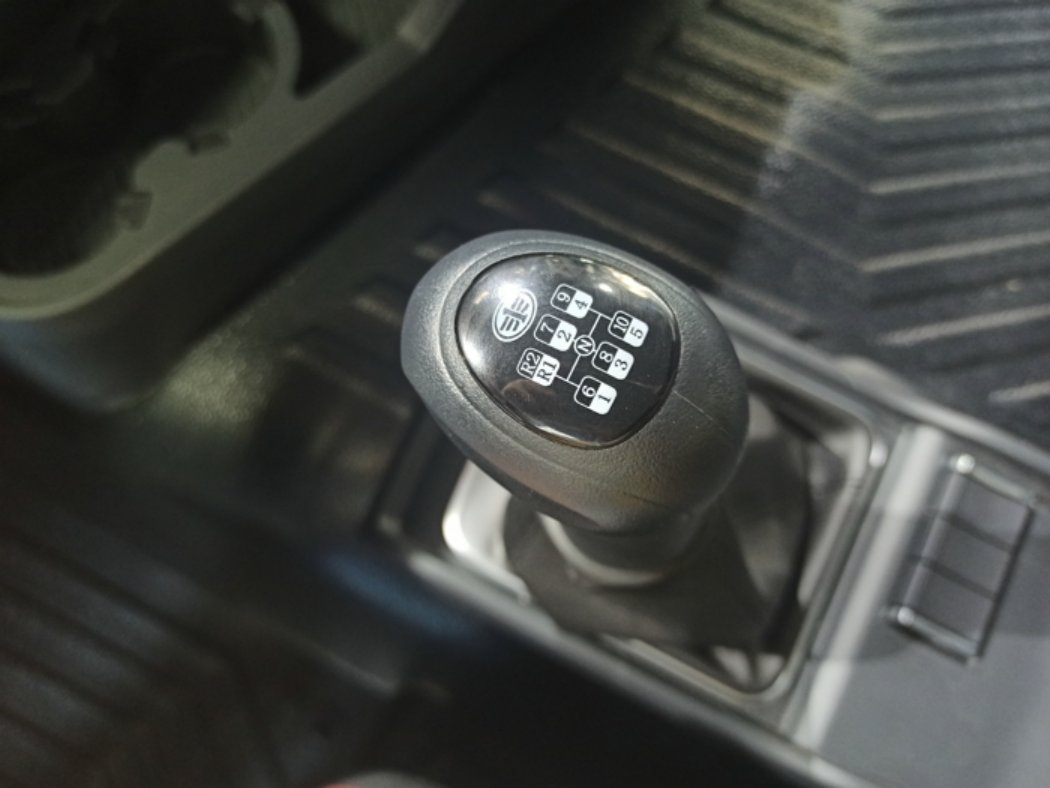

In terms of power, the car is equipped with Xichai CA6DF2-35E3F (built-in EGR) diesel engine of Jiefang Power, the maximum output power is 350ps, the engine displacement is 8.57L, and the emission standard is National three emissions. The transmission adopts FAW CA10TA160F manual transmission, forward gear number 10, reverse gear number 2. The clutch is a pull type, diaphragm spring clutch, the clutch size is Φ430.

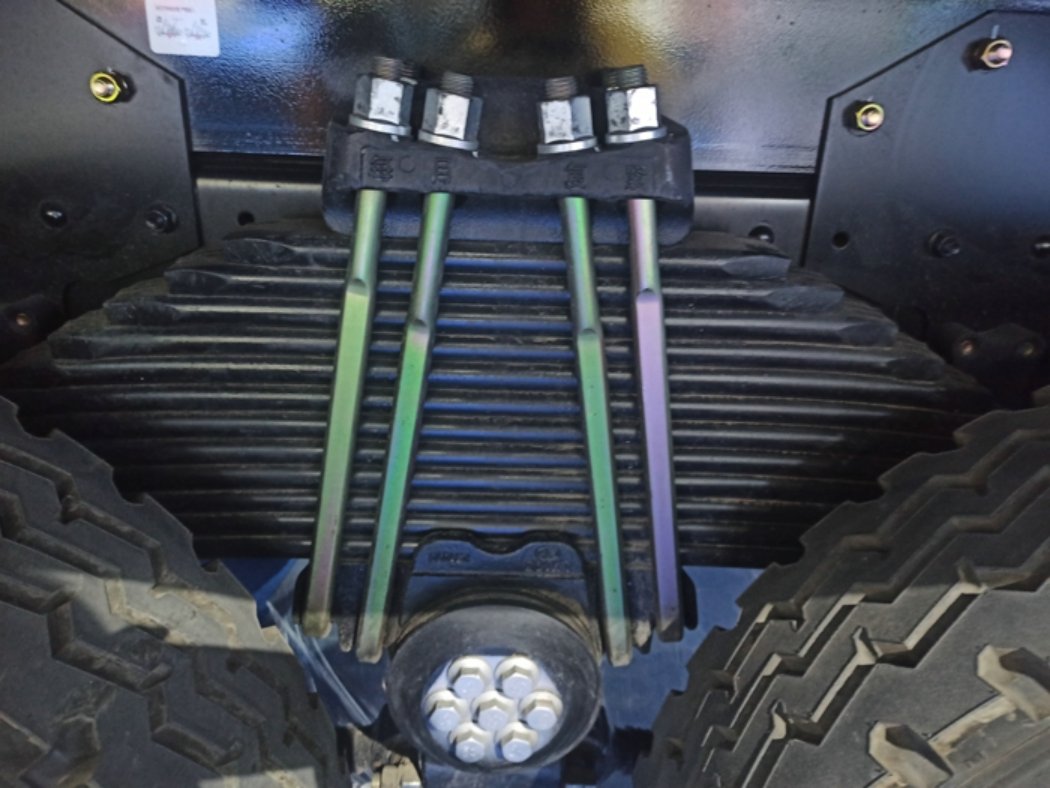

The rated load of the front axle is 9 tons, the rated load of the rear axle is 16 tons ×2, and the speed ratio of the main reducer is 5.921. In terms of suspension, the front suspension and rear suspension of the car adopt the form of multiple springs, and the number of steel plate springs is 12. In terms of braking, the service brake of the vehicle is drum brake, the front brake is drum brake, the rear brake is drum brake, the parking brake is compressed air controlled spring energy storage parking brake system, and the auxiliary brake is engine exhaust brake. The vehicle voltage is 150Ah battery, and the fuel tank is 400 liters steel tank.
In addition, the car is equipped with automatic heating and cooling air conditioning, with dual fuel filter, integrated iron shell oil bath air filter; Rectangular bucket, volume 20 vertical, the front top with domestic hydraulic cylinder, the middle side plate structure reinforcement reinforcement, lifting cylinder upper connection strengthened design, equipped with air damping seat. The car is equipped with a single sleeper and is reported to be 800mm wide.
According to the on-site staff, the joint dump truck on display is built for the African region and uses national three emissions; Different countries have different emission standards, and FAW Jiefang can launch reliable and rich vehicle products according to local regulations and the actual transportation needs of users, contributing to the construction of the "Belt and Road".
Closing remarks
Since the beginning of this year, FAW Jiefang has continuously increased its overseas market, and has now won several thousand-car orders. At this exhibition, FAW Jiefang joined hands with CCCC Vehicles to launch joint brands and joint brands of dump trucks, and through the combination of strong and strong, it will help liberate heavy trucks to win a higher share in overseas markets.
